Take Your .NET MAUI Testing to the Next Level with Maestro

Take Your .NET MAUI Testing to the Next Level with Maestro

12 September 2025

Buy Me A Coffee

Cross-platform mobile testing has long been a challenge for developers. Tools like Appium and Xamarin.UITest helped automate UI flows, but they often come with steep setup costs, slow execution, and brittle tests. With .NET MAUI being the next-generation cross-platform framework, developers are now looking for a more modern testing approach.

That’s where Maestro comes in — a lightweight, declarative mobile UI testing framework. Think of it as an enhanced version of Appium: easier to configure, faster to execute, and built with developer experience in mind.


What is Maestro?

Maestro is an open-source mobile UI testing framework designed for simplicity and speed. Instead of writing C# or Java test scripts, you define test flows in YAML. These flows describe interactions like tapping, entering text, scrolling, or verifying UI elements.

Maestro supports:

  • Android and iOS (including simulators/emulators)

  • Cross-platform test definitions

  • Declarative, human-readable syntax

  • Live reloading of test flows

  • Faster execution compared to Appium

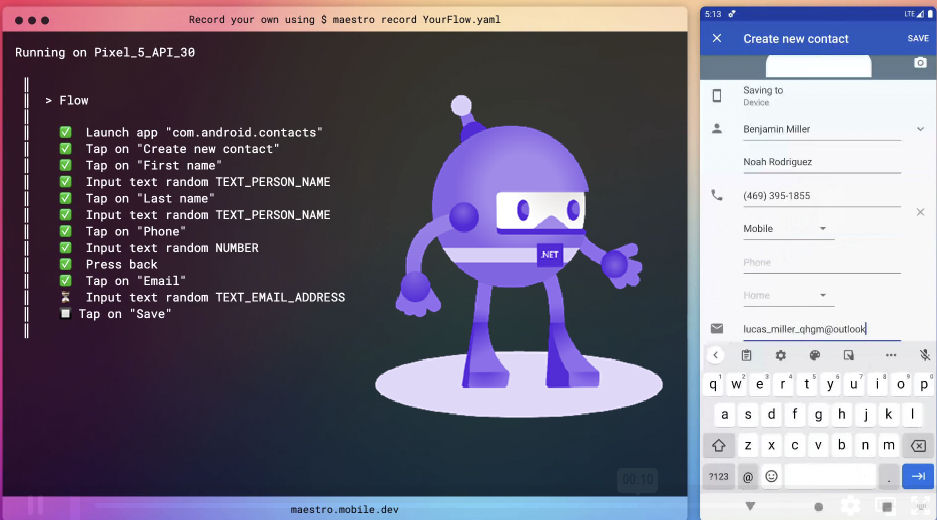

Maestro Logo


Why Use Maestro with .NET MAUI?

While .NET MAUI allows building apps for iOS, Android, macOS, and Windows with a shared C# codebase, end-to-end testing is still critical. Traditional tools like Appium or Xamarin.UITest can feel heavy and outdated. Maestro addresses this with:

  1. Simplicity – YAML-based test definitions instead of complex code.

  2. Cross-platform support – the same test works for both Android and iOS MAUI apps.

  3. Developer-friendly workflow – hot reload of test flows, easy debugging.

  4. CI/CD integration – works well with GitHub Actions, Azure DevOps, or any pipeline.


Installing Maestro

First, install Maestro on your machine as described at docs.maestro.dev

For Windows I recommend adding Maestro installation directory and Android Sdk folder to to environment path.

Verify installation:

maestro test

Installing Maestro Studio Desktop (Optional)

Maestro also comes with Maestro Studio, a GUI tool that allows you to record and create test flows visually. This is extremely useful for developers who don’t want to handwrite YAML from scratch.

I highly recommended installing the Maestro Studio Desktop to build tests visually.

Install Maestro Studio Desktop: Maestro Studio Desktop

It allows you to:

  • Record interactions directly on your emulator or device

  • Generate YAML test flows automatically

  • Debug test execution in real-time

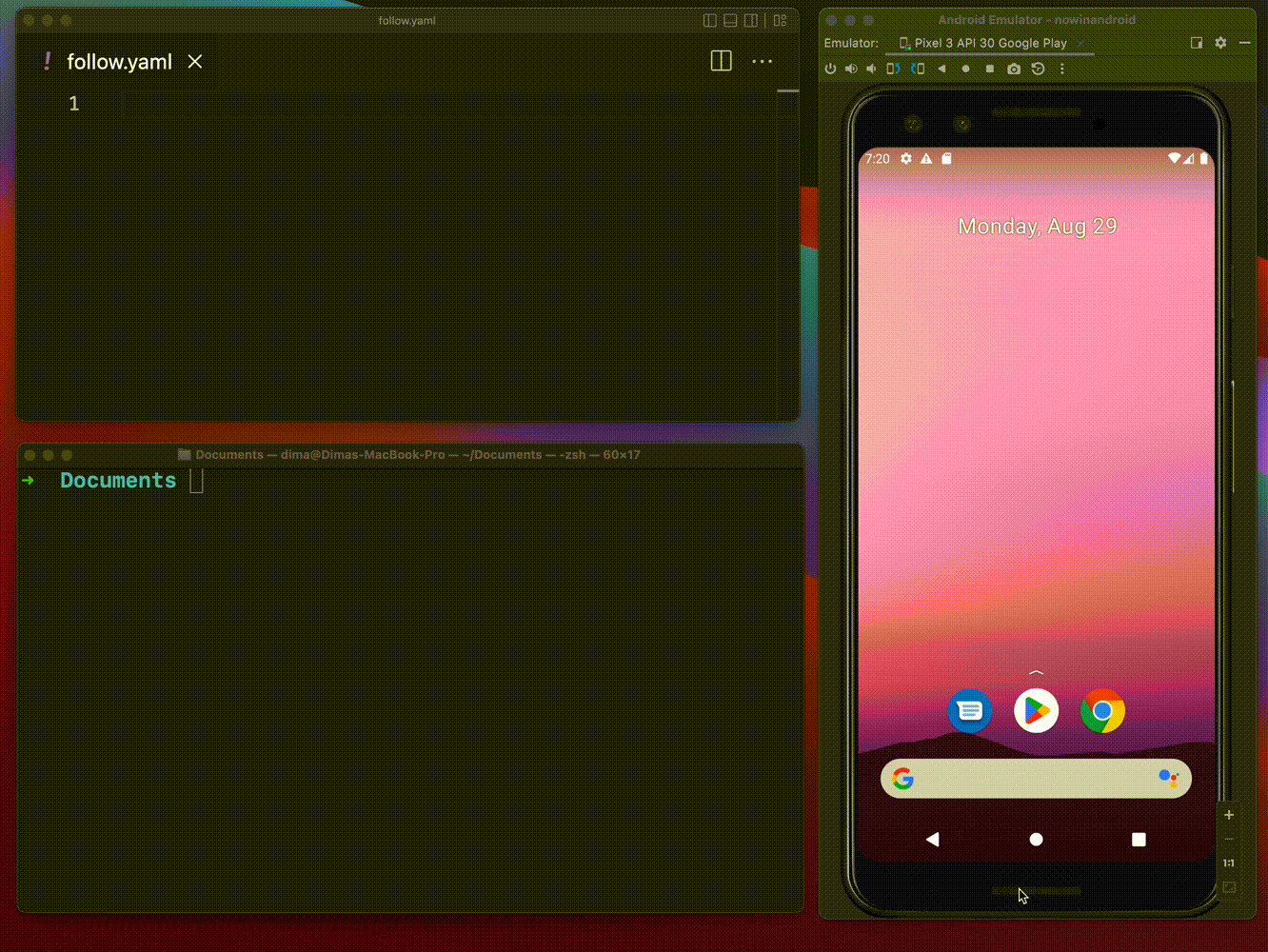

Maestro Studio Screenshot


Writing Your First MAUI Test

Suppose you have a simple .NET MAUI app with a login screen. You can create a Maestro test file named login_flow.yaml:

appId: com.companyname.mauiapp
---
- launchApp
- tapOn: "Username"
- inputText: "testuser"
- tapOn: "Password"
- inputText: "P@ssw0rd"
- tapOn: "Login"
- assertVisible: "Welcome"

This flow:

  1. Launches the app

  2. Enters username and password

  3. Taps the Login button

  4. Asserts that the text Welcome is visible


Real-World MAUI Scenarios with Maestro

1. Navigation Between Pages

Imagine a MAUI app with a Home screen that navigates to a Details page:

appId: com.companyname.mauiapp
---
- launchApp
- tapOn: "Details"
- assertVisible: "Details Page"
- tapOn: "Back"
- assertVisible: "Home"

This ensures navigation works as expected.

2. Testing a ListView or CollectionView

For a MAUI app that loads items from an API:

appId: com.companyname.mauiapp
---
- launchApp
- scrollUntilVisible:
    element: "Item 20"
- tapOn: "Item 20"
- assertVisible: "Item Details 20"

This verifies that long lists are scrollable and items are selectable.

3. Form Validation

Testing input validation is straightforward:

appId: com.companyname.mauiapp
---
- launchApp
- tapOn: "Submit"
- assertVisible: "Please enter a value"

This ensures your validation messages appear when users skip input fields.

4. Platform-Specific Features

Maestro also allows testing OS-level interactions:

  • Android Back Button:

appId: com.companyname.mauiapp
---
- launchApp
- tapOn: "Details"
- pressKey: back
- assertVisible: "Home"
  • iOS Swipe Gesture:

appId: com.companyname.mauiapp
---
- launchApp
- swipe:
    direction: left
- assertVisible: "Next Screen"

These tests validate platform-specific behaviors in your MAUI app.


Running the Test

Before running tests, ensure you have an Android emulator or iOS simulator running. Then, deploy your .NET MAUI app to the device.

adb install app.apk

You can run individual test files:

maestro test .maestro/Filter.yaml
maestro test .maestro/SearchQuizzles.yaml

or entire directories:

maestro test .maestro/

or even analyze and generate HTML reports:

maestro test --analyze --format html ./FLOWS_FOLDER

CI/CD Integration

You can integrate Maestro into GitHub Actions for automated MAUI testing.

If you use Maestro Cloud (PAID), you can use the following GitHub Action:

  - uses: mobile-dev-inc/action-maestro-cloud@v1
    with:
        api-key: ${{ secrets.MAESTRO_API_KEY }}
        project-id: MAESTRO_PROJECT_ID
        app-file: app.apk

For free execution you need to install Maestro CLI on your CI runner and run tests as part of your pipeline.

jobs:

    ui-tests:
        runs-on: ubuntu-latest

        steps:
            - uses: actions/checkout@v4

            - name: Enable KVM
              run: |
                echo 'KERNEL=="kvm", GROUP="kvm", MODE="0666", OPTIONS+="static_node=kvm"' | sudo tee /etc/udev/rules.d/99-kvm4all.rules
                sudo udevadm control --reload-rules
                sudo udevadm trigger --name-match=kvm

            - name: Install Maestro
              run: |
                curl -L https://get.maestro.mobile.dev | bash
              shell: bash

            - name: Run tests
              uses: reactivecircus/android-emulator-runner@v2
              with:
                api-level: 35
                target: "google_apis"
                arch: x86_64
                profile: Nexus 6
                script: |
                    adb install YourApkFile.apk
                    $HOME/.maestro/bin/maestro test .maestro

Comparing Maestro and Appium

Feature

Appium

Maestro

Setup Complexity

High (requires drivers, setup)

Low (single binary installation)

Test Language

C#, Java, Python, etc.

YAML (declarative)

Speed

Slower

Faster (lightweight)

CI/CD Integration

Possible but complex

Simple and fast

GUI Tooling

Limited

Maestro Studio (visual recorder)


Best Practices

  • Keep YAML flows small and modular.

  • Use IDs or accessibility labels in your MAUI app for stable selectors.

  • Store test flows in .maestro/ directory.

  • Run tests on both emulators and real devices.

  • Use Maestro Studio to quickly create and debug flows.


Conclusion

For .NET MAUI developers, Maestro offers a fresh, fast, and reliable way to automate mobile UI testing. While Appium is still powerful and flexible, Maestro provides a developer-friendly experience and is better suited for modern cross-platform workflows.

With Maestro Studio, real-time recording, and support for platform-specific interactions, you can build resilient tests faster and integrate them seamlessly into your development pipeline.

If you want to spend less time debugging test frameworks and more time building apps, give Maestro a try in your next .NET MAUI project.
