Hello and welcome to 2023! 👋

This article is devoted to creating a simple Markdown control using .NET MAUI Graphics.

.NET MAUI Graphics is a cross-platform API for drawing 2D graphics in .NET applications.

The Microsoft.Maui.Graphics namespace provides a cross-platform 2D graphics canvas that supports drawing and painting shapes and images, compositing operations, and graphical object transforms. You can read more about it on Microsoft docs.

Let's see how to add this cool API to your application.

Markdown control

.NET MAUI has a GraphicsView control. It is a graphics canvas for drawing 2D graphics.

Let's create a MarkdownGraphicsView control:

using Maui.BindableProperty.Generator.Core;

public partial class MarkdownGraphicsView : GraphicsView
{
	[AutoBindable(OnChanged = nameof(OnTextChanged))]
	private string? text;

	[AutoBindable(OnChanged = nameof(OnFontSizeChanged))]
	private float fontSize;

	[AutoBindable(OnChanged = nameof(OnFontColorChanged))]
	private Color fontColor = Colors.Black;

	private void OnTextChanged(string? oldValue, string? newValue)
	{
		Render();
	}
	private void OnFontSizeChanged(float oldValue, float newValue)
	{
		Render();
	}
	private void OnFontColorChanged(Color oldValue, Color newValue)
	{
		Render();
	}

	private void Render()
	{
		Drawable = new MarkdownDrawable(Text ?? string.Empty, FontColor, FontSize, Width, Height);
	}
}

I use M.BindableProperty.Generator Nuget package to simplify bindable property code generation.

MarkdownDrawable

GraphicsView defines the Drawable property, which specifies the content that will be drawn.

To create a new drawable we need to implement Draw method of IDrawable interface.

using Markdig;
using Microsoft.Maui.Graphics.Text;
using Microsoft.Maui.Graphics.Text.Renderer;
using Font = Microsoft.Maui.Graphics.Font;

public class MarkdownDrawable : IDrawable
{
	private readonly string text;
	private readonly Color fontColor;
	private readonly float fontSize;
	private readonly int markdownWidth;
	private readonly int markdownHeight;

	public MarkdownDrawable(string text, Color fontColor, double fontSize, double markdownWidth, double markdownHeight)
	{
		this.text = text;
		this.fontColor = fontColor;
		this.fontSize = (float)fontSize;
		this.markdownWidth = (int)markdownWidth;
		this.markdownHeight = (int)markdownHeight;
	}

	public void Draw(ICanvas canvas, RectF dirtyRect)
	{
		canvas.Font = Font.Default;
		canvas.FontSize = fontSize;
		canvas.FontColor = fontColor;
		var attributedText = Read(text);
		canvas.DrawText(attributedText, 0, 0, markdownWidth, markdownHeight);
	}

	private static IAttributedText Read(string text)
	{
		var renderer = new AttributedTextRenderer();
		renderer.ObjectRenderers.Add(new MauiCodeInlineRenderer());
		renderer.ObjectRenderers.Add(new MauiCodeBlockRenderer());
		renderer.ObjectRenderers.Add(new MauiHeadingRenderer());
		var builder = new MarkdownPipelineBuilder().UseEmojiAndSmiley().UseEmphasisExtras();
		var pipeline = builder.Build();
		Markdig.Markdown.Convert(text, renderer, pipeline);
		return renderer.GetAttributedText();
	}
}

Please take a look at Read method. .NET MAUI already has a MarkdownAttributedTextReader. So, for a simple scenario you can replace the code with:

private static IAttributedText Read(string text)
{
	return MarkdownAttributedTextReader.Read(text);
}

But, if you want to implement a custom renderer, or use your Markdown converter (Markdig is currently used), keep it as it is.

CustomRenderer

The final step is implementing a custom renderer for a specific markdown block.

Let's implement it for CodeInline. The CodeInline is a block of text you put in single quotes (`).

using Markdig.Syntax.Inlines;
using Microsoft.Maui.Graphics.Text;
using Microsoft.Maui.Graphics.Text.Renderer;

public class MauiCodeInlineRenderer : AttributedTextObjectRenderer<CodeInline>
{
	protected override void Write(AttributedTextRenderer renderer, CodeInline inlineBlock)
	{
		var start = renderer.Count;
		var attributes = new TextAttributes();
		attributes.SetForegroundColor("#d63384");
		renderer.Write(inlineBlock.Content);
		var length = renderer.Count - start;
		renderer.Call("AddTextRun", start, length, attributes);
	}
}

We also need to call Renderer.AddTextRun method, but it is internal in .NET MAUI. But we still can call it using reflection:

static class AccessExtensions
{
	public static void Call(this object o, string methodName, params object[] args)
	{
		var mi = o.GetType().GetMethod (methodName, System.Reflection.BindingFlags.NonPublic | System.Reflection.BindingFlags.Instance);
		mi?.Invoke (o, args);
	}
}

Result

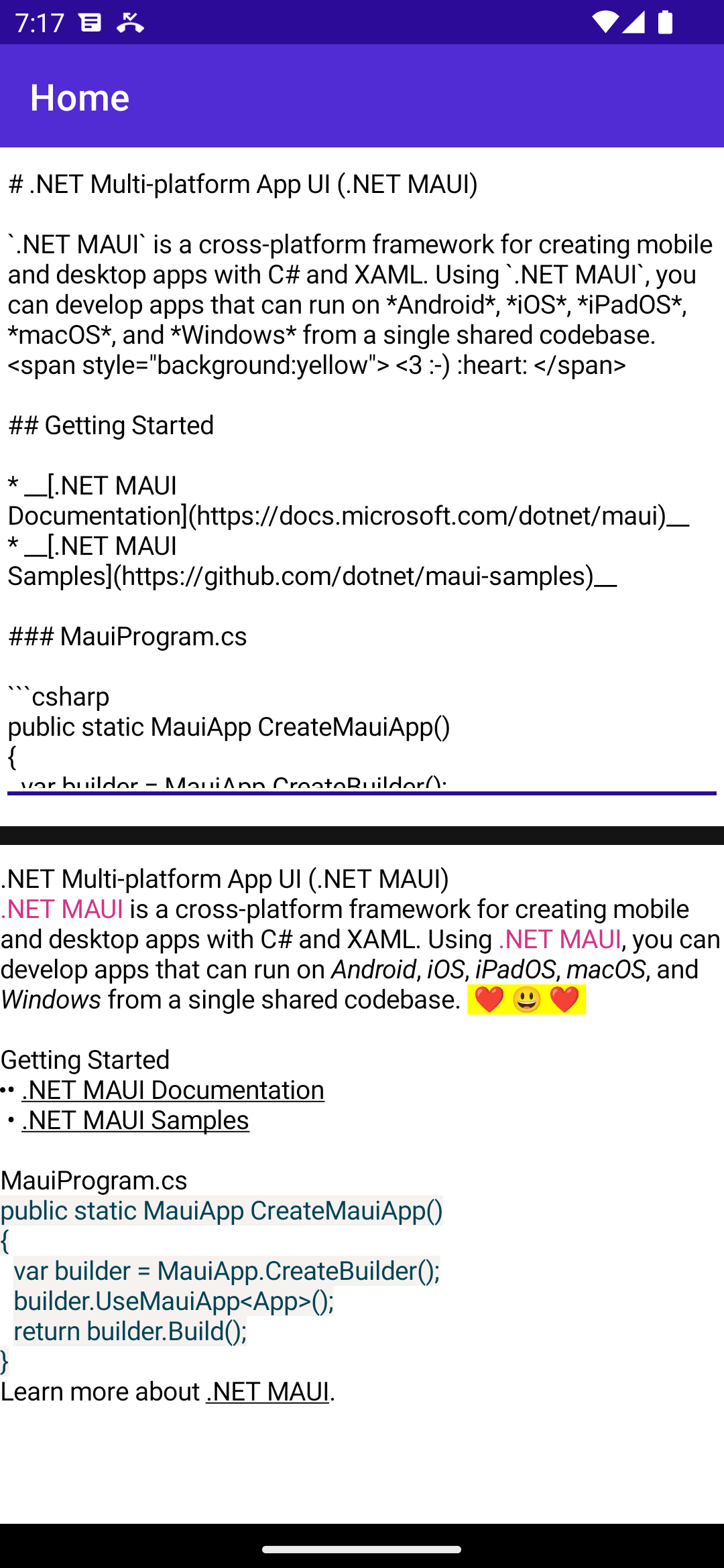

Android

Markdown on Android

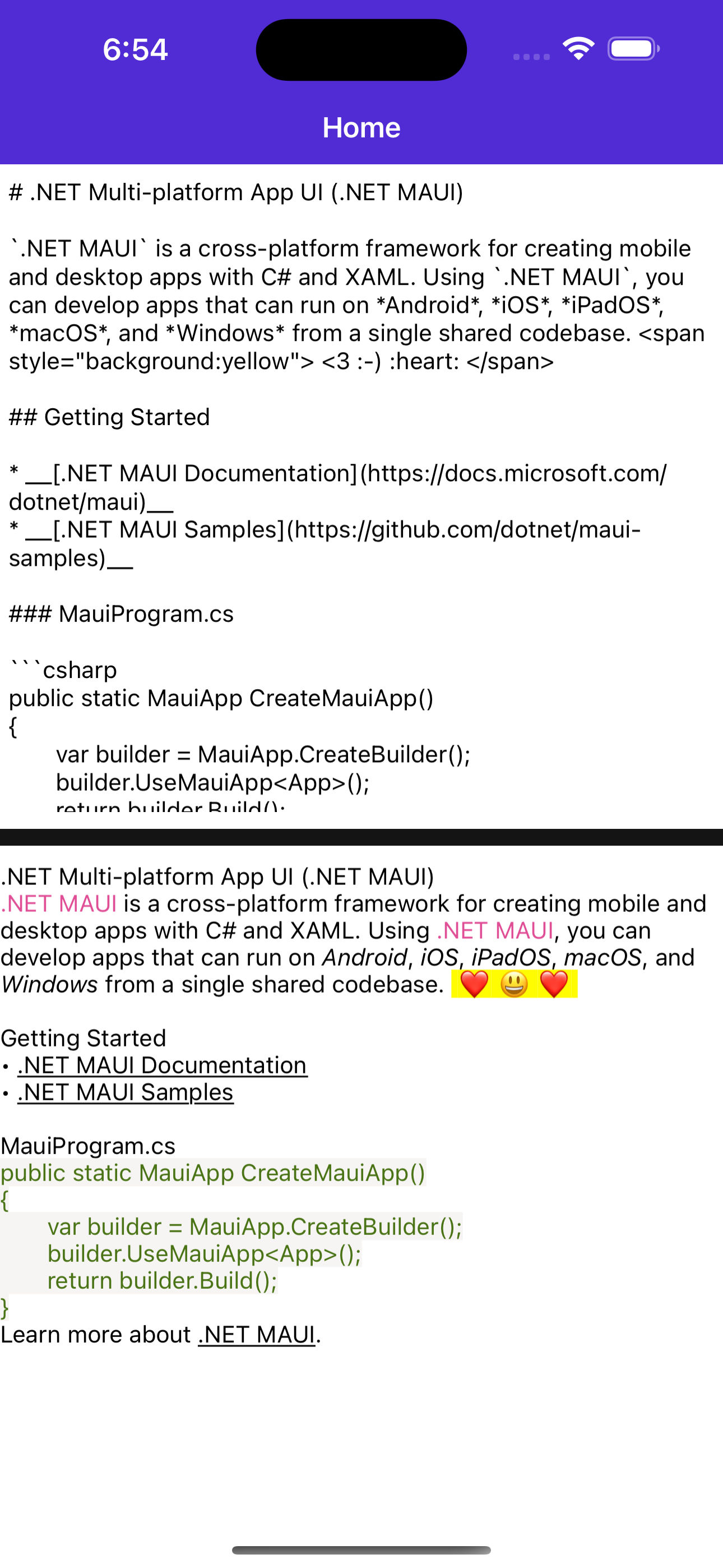

Markdown on iOS

Markdown on iOS

The full code can be found on GitHub.

Happy coding!
